A continuing look at Mamod's tools

An SE2 dating from 1952/53 driving the full compliment of tools, as illustrated in a dealers leaflet

Last of the flatbase lineshafts, this 1953 is a rare combination of elements

Bras-wheeled tools and flat base lineshaft

A power press box circa 1948-57

A power hammer box dating between 1948 and 1957

Detail of cast iron body on a brass-wheeled press/punch, c1948

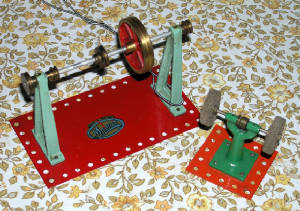

Very rare flatbase tools

A fine gathering of workshop tools and accessories

The lineshafts illustrated here show the major difference between the flat and raised bases. The lineshaft, like the stationary engines recieved a new base in 1954, and idea that Eric Malins had put forward in 1952, just before he left the company for while, before coming back in 1954/5. Notice in the lineshaft picture the variance in the decal. The flatbaser has the pre-war logo, although by this time the decal was the blue type using a sans serif font rather than the elaborate script of the initial design. Raised base lineshafts can also be found with the red oval decal with sans serif lettering. The pedestals on the flatbase version are cast iron. The later 1950s/60s versions through to the 1970s models utilised pop-rivets and mazak castings.

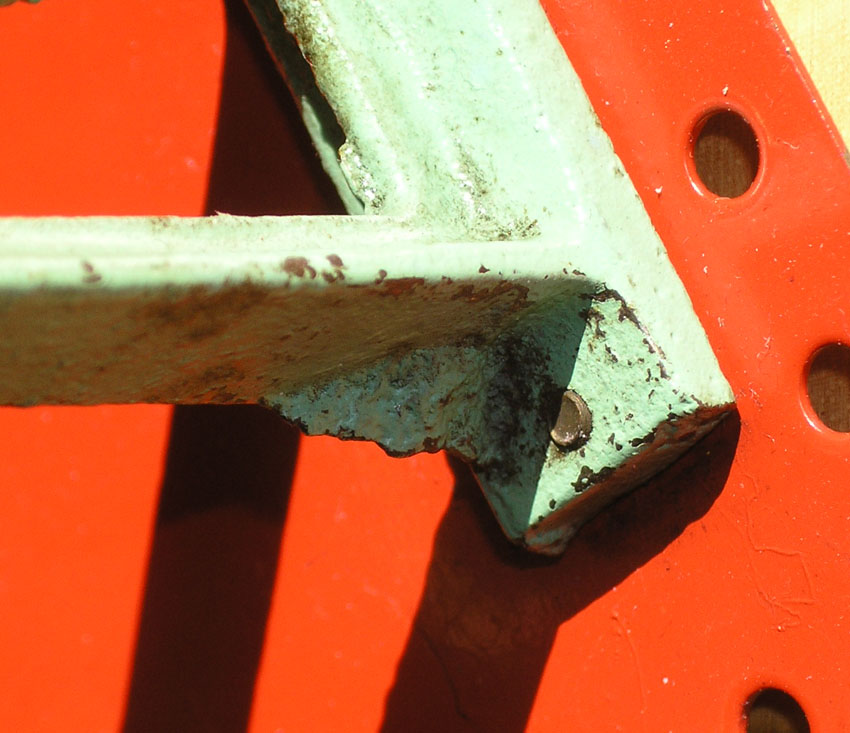

Note the roughness of the cast iron pedestal on a lineshaft from c1948

Lineshafts dating from 1949, 1960 and 1975.
